Mechanical seals – Counter rings
We work in different sectors such as food and pharmaceutical, chemistry, water treatment and Marine industry. Each sector has a different demand on the seal. We ensure ongoing processes, high chemical resistance and a high degree of reliability and durability of the seals, which we are familiar with.

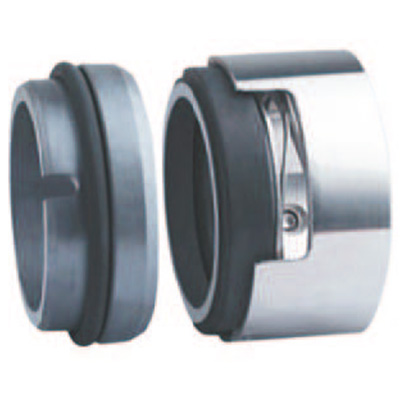

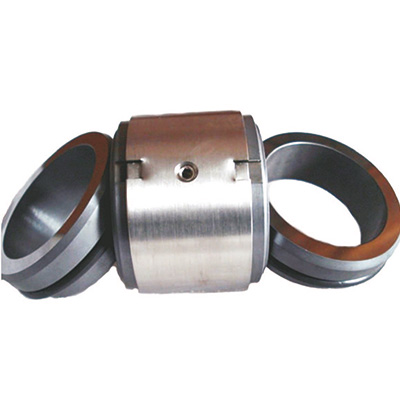

Typ 13D
Typ 13Druck

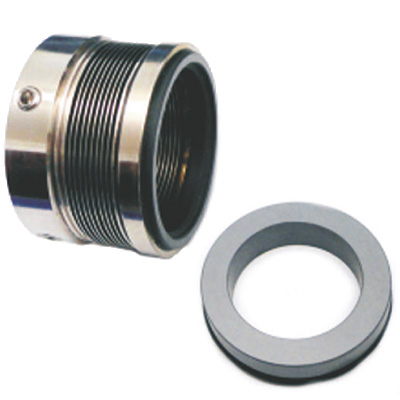

Typ 16

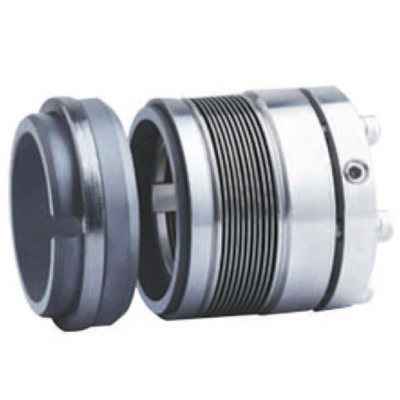

Typ 16HT

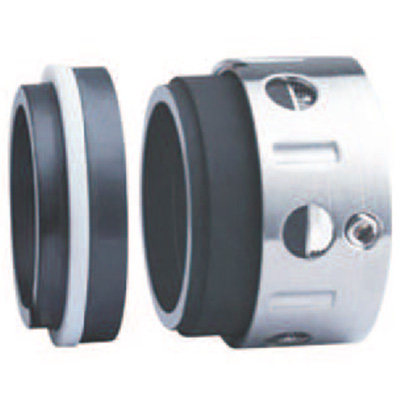

Typ 17B

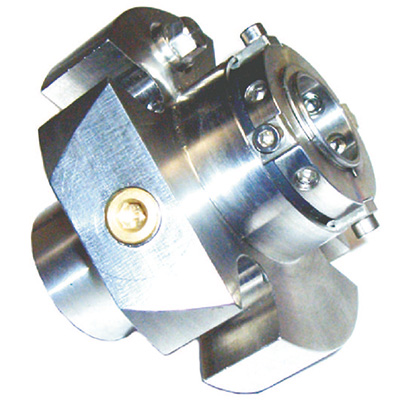

Typ 65

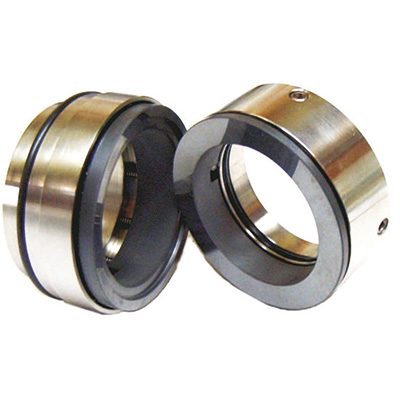

Typ All to Do

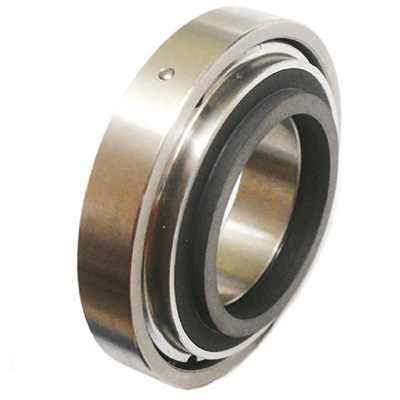

Typ B100

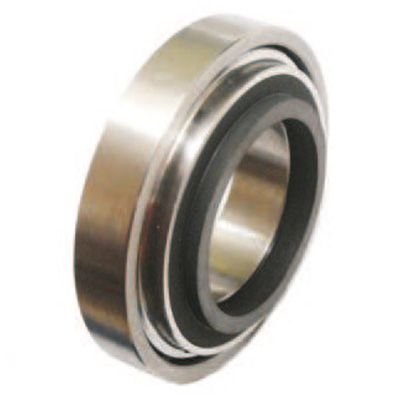

Typ B200

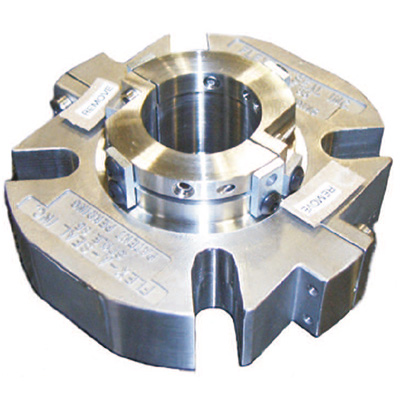

Typ D85

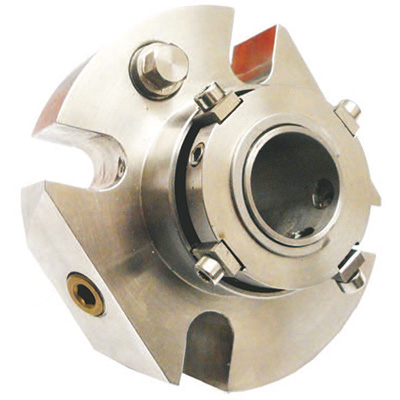

Typ DMBC

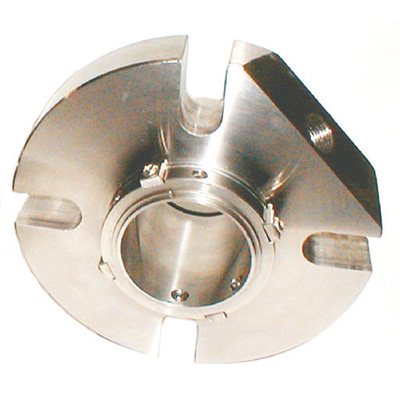

Typ S SQE
Type 8B
Description:
Axial face seal with conical spring, independent of direction of rotation, spring left or right. All qualities of elastomeric O-rings available, rotor chrome steel, stationary ring available in various carbon materials.
- Pressure:
- 10 bar
- Speed:
- 20 m/s
- Temperature:
- -40 °C to +200 °C
Standard dimensions:
| Shaft Ø in mm |
Size Code |
D1 | D2 | D3 | L1 | L2 | L3 |
|---|---|---|---|---|---|---|---|
| 10 | 0100 | 19.20 | 15.50 | 19.00 | 15.50 | 7.10 | 5.00 |
| 12 | 0120 | 21.60 | 17.50 | 21.00 | 15.50 | 7.60 | 5.00 |
| 14 | 0140 | 24.60 | 20.50 | 23.00 | 15.50 | 7.60 | 5.00 |
| 15 | 0150 | 24.60 | 20.50 | 24.00 | 15.50 | 8.60 | 5.00 |
| 16 | 0160 | 28.00 | 22.00 | 26.00 | 17.50 | 9.00 | 6.50 |
| 18 | 0180 | 30.00 | 24.00 | 29.00 | 18.50 | 10.00 | 6.50 |
| 19 | 0190 | 31.00 | 25.00 | 31.00 | 20.00 | 9.00 | 6.50 |
| 20 | 0200 | 35.00 | 29.50 | 31.00 | 20.00 | 9.50 | 6.50 |
| 22 | 0220 | 35.00 | 29.50 | 33.00 | 21.50 | 9.50 | 6.50 |
| 24 | 0240 | 38.00 | 32.00 | 35.00 | 23.00 | 9.50 | 6.50 |
| 25 | 0250 | 38.00 | 32.00 | 36.00 | 24.50 | 9.50 | 6.50 |
| 26 | 0260 | 40.00 | 34.00 | 37.00 | 24.50 | 10.00 | 6.50 |
| 28 | 0280 | 42.00 | 36.00 | 40.00 | 24.50 | 11.00 | 6.50 |
| 30 | 0300 | 45.00 | 39.20 | 43.00 | 24.50 | 11.00 | 6.50 |
| 32 | 0320 | 48.00 | 42.20 | 46.00 | 28.00 | 11.00 | 6.50 |
| 33 | 0330 | 48.00 | 47.60 | 7.50 | 7.00 | 11.50 | 3.00 |
| 35 | 0350 | 52.00 | 46.20 | 49.00 | 28.00 | 11.50 | 6.50 |
| 38 | 0380 | 55.00 | 49.20 | 53.00 | 31.00 | 11.50 | 6.50 |
| 40 | 0400 | 58.00 | 52.20 | 56.00 | 34.00 | 11.50 | 6.50 |
| 42 | 0420 | 62.00 | 53.30 | 59.00 | 35.00 | 14.30 | 8.00 |
| 43 | 0430 | 63.00 | 54.30 | 59.00 | 35.00 | 14.30 | 8.00 |
| 45 | 0450 | 64.00 | 55.30 | 61.00 | 36.50 | 14.30 | 8.00 |
| 48 | 0480 | 68.40 | 59.70 | 64.00 | 42.00 | 14.30 | 8.00 |
| 50 | 0500 | 69.30 | 60.80 | 66.00 | 43.00 | 14.30 | 8.00 |
| 55 | 0550 | 75.40 | 66.50 | 71.00 | 47.00 | 15.30 | 8.00 |
| 58 | 0580 | 78.40 | 69.50 | 76.00 | 50.00 | 15.30 | 8.00 |
| 60 | 0600 | 80.40 | 71.50 | 78.00 | 51.00 | 15.30 | 8.00 |
| 65 | 0650 | 85.40 | 76.50 | 84.00 | 52.00 | 15.30 | 8.00 |
| 68 | 0680 | 91.50 | 82.70 | 88.00 | 53.00 | 16.00 | 8.00 |
| 70 | 0700 | 92.00 | 83.00 | 90.00 | 54.00 | 15.30 | 8.00 |
| 75 | 0750 | 99.00 | 90.20 | 98.00 | 55.00 | 15.30 | 8.00 |
| 80 | 0800 | 104.00 | 95.20 | 100.00 | 58.00 | 16.30 | 8.00 |
Type 10/20 M
Description:
Short-bellow axial face seal with robust cylindrical spring. Combination with miscellaneous types of stationary rings is possible.
- Pressure:
- 14 bar
- Speed:
- 15 m/s
- Temperature:
- -40 °C to +200 °C
Standard dimensions:
| Shaft Ø in mm |
Size Code |
D1 | D2 | D3 | L1 | L2 | L3 | L4 |
|---|---|---|---|---|---|---|---|---|
| 10 | 0100 | 24.60 | 16.00 | 22.95 | 43.65 | 25.40 | 8.74 | 7.47 |
| 12 | 0120 | 27.79 | 19.05 | 23.90 | 43.65 | 25.40 | 8.74 | 7.47 |
| 13 | 0130 | 27.79 | 19.05 | 23.90 | 43.65 | 25.40 | 8.74 | 7.47 |
| 14 | 0140 | 30.95 | 22.23 | 26.70 | 43.65 | 25.40 | 10.32 | 8.97 |
| 15 | 0150 | 30.95 | 22.23 | 26.70 | 43.65 | 25.40 | 10.32 | 8.97 |
| 16 | 0160 | 30.95 | 22.23 | 26.70 | 43.65 | 25.40 | 10.32 | 8.97 |
| 18 | 0180 | 34.15 | 25.40 | 31.10 | 43.65 | 25.40 | 10.32 | 8.97 |
| 19 | 0190 | 34.15 | 25.40 | 31.10 | 43.65 | 25.40 | 10.32 | 8.97 |
| 20 | 0200 | 35.70 | 26.99 | 33.40 | 43.65 | 25.40 | 10.32 | 8.97 |
| 22 | 0220 | 37.30 | 28.58 | 33.40 | 43.65 | 25.40 | 10.32 | 8.97 |
| 24 | 0240 | 40.50 | 31.75 | 39.20 | 43.65 | 25.40 | 10.32 | 8.97 |
| 25 | 0250 | 40.50 | 31.75 | 39.20 | 43.65 | 25.40 | 10.32 | 8.97 |
| 28 | 0280 | 47.63 | 35.72 | 46.30 | 60.33 | 33.34 | 11.99 | 10.46 |
| 30 | 0300 | 50.80 | 38.89 | 49.40 | 60.33 | 33.34 | 11.99 | 10.46 |
| 32 | 0320 | 50.80 | 38.89 | 49.40 | 60.33 | 33.34 | 11.99 | 10.46 |
| 33 | 0330 | 53.98 | 42.07 | 52.60 | 60.33 | 33.34 | 11.99 | 10.46 |
| 34 | 0340 | 53.98 | 42.07 | 52.60 | 60.33 | 33.34 | 11.99 | 10.46 |
| 35 | 0350 | 53.98 | 42.07 | 52.60 | 60.33 | 33.34 | 11.99 | 10.46 |
| 38 | 0381 | 57.15 | 45.24 | 55.80 | 60.33 | 33.34 | 11.99 | 10.46 |
| 40 | 0400 | 60.35 | 48.82 | 62.20 | 60.33 | 33.34 | 11.99 | 10.46 |
| 42 | 0420 | 63.50 | 51.59 | 66.00 | 70.64 | 40.48 | 11.99 | 10.46 |
| 43 | 0430 | 63.50 | 51.59 | 66.00 | 70.64 | 40.48 | 11.99 | 10.46 |
| 44 | 0440 | 63.50 | 51.59 | 66.00 | 70.64 | 40.48 | 11.99 | 10.46 |
| 45 | 0450 | 63.50 | 51.59 | 66.00 | 70.64 | 40.48 | 11.99 | 10.46 |
| 48 | 0480 | 66.70 | 54.75 | 66.60 | 70.64 | 40.48 | 11.99 | 10.46 |
| 50 | 0500 | 69.85 | 58.00 | 71.65 | 70.64 | 40.48 | 11.99 | 10.46 |
| 53 | 0530 | 73.05 | 62.00 | 73.30 | 71.00 | 41.00 | 13.50 | 11.96 |
| 55 | 0550 | 76.20 | 65.00 | 78.40 | 71.00 | 41.00 | 13.50 | 11.96 |
| 58 | 0580 | 79.40 | 68.00 | 82.00 | 71.00 | 41.00 | 13.50 | 11.96 |
| 60 | 0600 | 79.40 | 68.00 | 82.00 | 71.00 | 41.00 | 13.50 | 11.96 |
| 63 | 0630 | 82.55 | 71.20 | 84.90 | 71.00 | 41.00 | 13.50 | 11.96 |
| 65 | 0650 | 92.10 | 78.35 | 88.40 | 70.00 | 49.00 | 15.90 | 14.50 |
| 70 | 0700 | 95.25 | 81.10 | 92.60 | 70.00 | 49.00 | 15.90 | 14.50 |
| 73 | 0730 | 98.45 | 84.50 | 94.85 | 73.00 | 49.00 | 15.90 | 14.50 |
| 75 | 0750 | 101.65 | 88.10 | 101.90 | 73.00 | 49.00 | 15.90 | 14.50 |
| 80 | 0800 | 114.30 | 97.00 | 104.00 | 79.00 | 56.00 | 20.00 | 18.50 |
| 85 | 0850 | 117.50 | 100.00 | 108.00 | 79.00 | 56.00 | 20.00 | 18.50 |
| 90 | 0900 | 123.85 | 107.00 | 112.00 | 83.00 | 59.00 | 20.00 | 18.50 |
| 95 | 0950 | 127.00 | 110.00 | 119.00 | 83.00 | 59.00 | 20.00 | 18.50 |
| 100 | 1000 | 133.35 | 116.00 | 124.00 | 86.00 | 62.00 | 20.00 | 18.50 |
Type 12 DIN
Description:
Axial face seal with conical spring, independent of direction of rotation, spring left or right. All qualities of elastomeric O-rings available, dimensions in acc. with DIN 24960, rotor chrome steel, stationary ring available in various carbon materials.
- Pressure:
- 10 bar
- Speed:
- 20 m/s
- Temperature:
- -40 °C to +200 °C
Standard dimensions:
| Shaft Ø in mm |
Size Code |
D1 | D2 | D3 | L1 | L2 | L3 |
|---|---|---|---|---|---|---|---|
| 10 | 0100 | 21.00 | 17.00 | 19.00 | 15.00 | 7.00 | 4.00 |
| 12 | 0120 | 23.00 | 19.00 | 21.00 | 18.00 | 7.00 | 4.00 |
| 14 | 0140 | 25.00 | 21.00 | 23.00 | 22.00 | 7.00 | 4.00 |
| 16 | 0160 | 27.00 | 23.00 | 26.00 | 23.00 | 7.00 | 4.00 |
| 18 | 0180 | 33.00 | 27.00 | 29.00 | 24.00 | 10.00 | 5.00 |
| 20 | 0200 | 35.00 | 29.00 | 31.00 | 25.00 | 10.00 | 5.00 |
| 22 | 0220 | 37.00 | 31.00 | 33.00 | 25.00 | 10.00 | 5.00 |
| 24 | 0240 | 39.00 | 33.00 | 35.00 | 27.00 | 10.00 | 5.00 |
| 25 | 0250 | 40.00 | 34.00 | 36.00 | 27.00 | 10.00 | 5.00 |
| 28 | 0280 | 43.00 | 37.00 | 40.00 | 29.00 | 10.00 | 5.00 |
| 30 | 0300 | 45.00 | 39.00 | 43.00 | 30.00 | 10.00 | 5.00 |
| 32 | 0320 | 48.00 | 42.00 | 46.00 | 30.00 | 10.00 | 5.00 |
| 33 | 0330 | 48.00 | 42.00 | 46.00 | 39.00 | 10.00 | 5.00 |
| 35 | 0350 | 50.00 | 44.00 | 49.00 | 39.00 | 10.00 | 5.00 |
| 38 | 0380 | 56.00 | 49.00 | 53.00 | 42.00 | 13.00 | 6.00 |
| 40 | 0400 | 58.00 | 51.00 | 56.00 | 42.00 | 13.00 | 6.00 |
| 43 | 0430 | 61.00 | 54.00 | 59.00 | 47.00 | 13.00 | 6.00 |
| 45 | 0450 | 63.00 | 56.00 | 61.00 | 47.00 | 13.00 | 6.00 |
| 48 | 0480 | 66.00 | 59.00 | 64.00 | 47.00 | 13.00 | 6.00 |
| 50 | 0500 | 70.00 | 62.00 | 66.00 | 46.00 | 14.00 | 6.00 |
| 53 | 0530 | 73.00 | 65.00 | 69.00 | 56.00 | 14.00 | 6.00 |
| 55 | 0550 | 75.00 | 67.00 | 71.00 | 56.00 | 14.00 | 6.00 |
| 58 | 0580 | 78.00 | 70.00 | 76.00 | 56.00 | 14.00 | 6.00 |
| 60 | 0600 | 80.00 | 72.00 | 78.00 | 56.00 | 14.00 | 6.00 |
| 63 | 0630 | 83.00 | 75.00 | 81.00 | 56.00 | 14.00 | 6.00 |
| 65 | 0650 | 85.00 | 77.00 | 84.00 | 66.00 | 14.00 | 6.00 |
| 68 | 0680 | 90.00 | 81.00 | 88.00 | 64.00 | 16.00 | 7.00 |
| 70 | 0700 | 92.00 | 83.00 | 89.60 | 64.00 | 16.00 | 7.00 |
| 75 | 0750 | 97.00 | 88.00 | 98.00 | 64.00 | 16.00 | 7.00 |
| 80 | 0800 | 105.00 | 95.00 | 100.00 | 72.00 | 18.00 | 7.00 |
| 85 | 0850 | 110.00 | 100.00 | 107.50 | 72.00 | 18.00 | 7.00 |
| 90 | 0900 | 115.00 | 105.00 | 111.00 | 72.00 | 18.00 | 7.00 |
| 95 | 0950 | 120.00 | 110.00 | 119.00 | 72.00 | 18.00 | 7.00 |
| 100 | 1000 | 125.00 | 115.00 | 123.80 | 72.00 | 18.00 | 7.00 |
Type 13
Description:
Axial face seal with conical spring, spring left or right. Stationary ring O-ring-mounted, anti-friction face fitted in sheet metal casing. Stationary ring and axial face seal can be exchanged with each other and easily replaced.
- Pressure:
- 10 bar
- Speed:
- 20 m/s
- Temperature:
- -40 °C to +180 °C
Standard dimensions:
| Shaft Ø in mm |
Size Code |
D1 | D2 | D3 | L1 | L2 | L3 |
|---|---|---|---|---|---|---|---|
| 10 | 0100 | 18.10 | 14.00 | 19.50 | 15.00 | 5.50 | 4.00 |
| 11 | 0110 | 20.60 | 16.50 | 22.00 | 18.00 | 5.50 | 4.00 |
| 12 | 0120 | 20.60 | 16.50 | 22.80 | 18.00 | 5.50 | 4.00 |
| 13 | 0130 | 23.10 | 19.00 | 25.00 | 22.00 | 6.00 | 4.00 |
| 14 | 0140 | 23.10 | 19.00 | 25.00 | 22.00 | 6.00 | 4.00 |
| 15 | 0150 | 26.90 | 21.00 | 28.60 | 22.00 | 7.00 | 5.00 |
| 16 | 0160 | 26.90 | 21.00 | 28.60 | 23.00 | 7.00 | 5.00 |
| 17 | 0170 | 26.90 | 21.00 | 28.60 | 23.00 | 7.00 | 5.00 |
| 18 | 0180 | 30.90 | 25.00 | 32.70 | 24.00 | 8.00 | 5.00 |
| 19 | 0190 | 30.90 | 25.00 | 32.70 | 25.00 | 8.00 | 5.00 |
| 20 | 0200 | 30.90 | 25.00 | 32.70 | 25.00 | 8.00 | 5.00 |
| 21 | 0210 | 35.40 | 30.00 | 37.40 | 25.00 | 8.00 | 5.50 |
| 22 | 0220 | 35.40 | 30.00 | 37.40 | 25.00 | 8.00 | 5.50 |
| 23 | 0230 | 35.40 | 30.00 | 37.40 | 27.00 | 8.00 | 5.50 |
| 24 | 0240 | 35.40 | 30.00 | 37.40 | 27.00 | 8.00 | 5.50 |
| 25 | 0250 | 38.20 | 33.00 | 40.00 | 27.00 | 8.50 | 5.50 |
| 28 | 0280 | 43.30 | 38.00 | 45.50 | 29.00 | 9.00 | 5.50 |
| 29 | 0290 | 43.30 | 38.00 | 45.50 | 30.00 | 9.00 | 5.50 |
| 30 | 0300 | 43.30 | 38.00 | 45.50 | 30.00 | 9.00 | 5.50 |
| 32 | 0320 | 43.30 | 38.00 | 45.50 | 30.00 | 9.00 | 5.50 |
| 33 | 0330 | 53.50 | 45.00 | 48.00 | 39.00 | 11.50 | 7.50 |
| 35 | 0350 | 53.50 | 45.00 | 50.00 | 39.00 | 11.50 | 7.50 |
| 38 | 0380 | 60.50 | 52.00 | 56.00 | 39.00 | 11.50 | 7.50 |
| 40 | 0400 | 60.50 | 52.00 | 58.00 | 39.00 | 11.50 | 7.50 |
Type 7615
Description:
Axial face seal with conical spring; spring left or right.
All qualities of elastomeric O-rings available,
rotor stainless steel with shrinked carbon, miscellaneous qualities available
stationary ring O-ring-mounted, many materials and dimensions with or without
anti-twist guard available; can be combined with all types of stationary rings
- Pressure:
- 10 bar
- Speed:
- 25 m/s
- Temperature:
- -40 °C to +230 °C
Standard dimensions:
| Shaft Ø in mm |
Size Code |
D1 | D2 | D3 | L1 | L2 | L3 |
|---|---|---|---|---|---|---|---|
| 10 | 0100 | 19.20 | 15.50 | 19.00 | 15.50 | 6.60 | 5.00 |
| 12 | 0120 | 21.60 | 17.50 | 21.00 | 15.50 | 5.60 | 5.00 |
| 14 | 0140 | 24.60 | 20.50 | 23.00 | 15.50 | 5.60 | 5.00 |
| 15 | 0150 | 24.60 | 20.50 | 24.00 | 15.50 | 6.60 | 5.00 |
| 16 | 0160 | 28.00 | 22.00 | 26.00 | 17.50 | 7.50 | 6.50 |
| 18 | 0180 | 30.00 | 24.00 | 29.00 | 18.50 | 8.00 | 6.50 |
| 19 | 0190 | 31.00 | 25.00 | 31.00 | 20.00 | 7.50 | 6.50 |
| 20 | 0200 | 35.00 | 29.50 | 31.00 | 20.00 | 7.50 | 6.50 |
| 22 | 0220 | 35.00 | 29.50 | 33.00 | 21.50 | 7.50 | 6.50 |
| 24 | 0240 | 38.00 | 32.00 | 35.00 | 23.00 | 7.50 | 6.50 |
| 25 | 0250 | 38.00 | 32.00 | 36.00 | 24.50 | 7.50 | 6.50 |
| 26 | 0260 | 40.00 | 34.00 | 37.00 | 24.50 | 8.00 | 6.50 |
| 28 | 0280 | 42.00 | 36.00 | 40.00 | 24.50 | 9.00 | 6.50 |
| 30 | 0300 | 45.00 | 39.20 | 43.00 | 24.50 | 10.50 | 6.50 |
| 32 | 0320 | 48.00 | 42.20 | 46.00 | 28.00 | 10.50 | 6.50 |
| 35 | 0350 | 52.00 | 46.20 | 49.00 | 28.00 | 11.00 | 6.50 |
| 38 | 0380 | 55.00 | 49.20 | 53.00 | 31.00 | 10.30 | 6.50 |
| 40 | 0400 | 58.00 | 52.20 | 56.00 | 34.00 | 10.80 | 6.50 |
| 42 | 0420 | 62.00 | 53.30 | 59.00 | 35.00 | 12.00 | 8.00 |
| 43 | 0430 | 63.00 | 54.30 | 59.00 | 35.00 | 12.00 | 8.00 |
| 45 | 0450 | 64.00 | 55.30 | 61.00 | 36.50 | 11.60 | 8.00 |
| 48 | 0480 | 68.40 | 59.70 | 64.00 | 42.00 | 11.60 | 8.00 |
| 50 | 0500 | 69.30 | 60.80 | 66.00 | 43.00 | 11.60 | 8.00 |
| 55 | 0550 | 75.40 | 66.50 | 71.00 | 47.00 | 13.30 | 8.00 |
| 58 | 0580 | 78.40 | 69.50 | 76.00 | 50.00 | 13.30 | 8.00 |
| 60 | 0600 | 80.40 | 71.50 | 78.00 | 51.00 | 13.30 | 8.00 |
| 65 | 0650 | 85.40 | 76.50 | 84.00 | 52.00 | 13.00 | 8.00 |
| 68 | 0680 | 91.50 | 82.70 | 88.00 | 53.00 | 13.70 | 8.00 |
| 70 | 0700 | 92.00 | 83.00 | 90.00 | 54.00 | 13.00 | 8.00 |
| 75 | 0750 | 99.00 | 92.20 | 98.00 | 55.00 | 14.00 | 8.00 |
| 80 | 0800 | 104.00 | 95.20 | 100.00 | 58.00 | 15.00 | 8.00 |
Type 7615 D
Description:
Axial face seal with conical spring, independent of direction of rotation, spring left or right. All qualities of elastomeric O-rings available, rotor chrome steel, stationary ring available in various carbon materials.
- Pressure:
- 10 bar
- Speed:
- 25 m/s
- Temperature:
- -40 °C to +230 °C
Standard dimensions:
| Shaft Ø in mm |
Size Code |
D1 | D2 | D3 | L1 | L2 | L3 | L4 | L5 |
|---|---|---|---|---|---|---|---|---|---|
| 10 | 0100 | 21.00 | 17.00 | 19.00 | 15.50 | 10.00 | 5.50 | 3.00 | 5.00 |
| 12 | 0120 | 23.00 | 19.00 | 21.00 | 16.00 | 10.00 | 5.50 | 3.00 | 5.00 |
| 14 | 0140 | 25.00 | 21.00 | 23.00 | 16.50 | 10.00 | 5.50 | 3.00 | 5.00 |
| 16 | 0160 | 27.00 | 23.00 | 26.00 | 18.00 | 10.00 | 5.50 | 3.00 | 5.00 |
| 18 | 0180 | 33.00 | 27.00 | 29.00 | 19.50 | 11.50 | 7.00 | 3.00 | 5.00 |
| 20 | 0200 | 35.00 | 29.00 | 31.00 | 22.00 | 11.50 | 7.00 | 3.00 | 5.00 |
| 22 | 0220 | 37.00 | 31.00 | 33.00 | 21.50 | 11.50 | 7.00 | 3.00 | 5.00 |
| 24 | 0240 | 39.00 | 33.00 | 35.00 | 23.50 | 11.50 | 7.00 | 3.00 | 5.00 |
| 25 | 0250 | 40.00 | 34.00 | 36.00 | 26.50 | 11.50 | 7.00 | 3.00 | 5.00 |
| 28 | 0280 | 43.00 | 37.00 | 40.00 | 26.50 | 11.50 | 7.00 | 3.00 | 5.00 |
| 30 | 0300 | 45.00 | 39.00 | 43.00 | 26.50 | 11.50 | 7.00 | 3.00 | 5.00 |
| 32 | 0320 | 48.00 | 42.00 | 46.00 | 28.50 | 11.50 | 7.00 | 3.00 | 5.00 |
| 35 | 0350 | 50.00 | 44.00 | 49.00 | 28.50 | 11.50 | 7.00 | 3.00 | 5.00 |
| 38 | 0380 | 56.00 | 49.00 | 53.00 | 33.50 | 14.00 | 8.00 | 4.00 | 5.00 |
| 40 | 0400 | 58.00 | 51.00 | 56.00 | 36.00 | 14.00 | 8.00 | 4.00 | 5.00 |
| 43 | 0430 | 61.00 | 54.00 | 59.00 | 38.50 | 14.00 | 8.00 | 4.00 | 5.00 |
| 45 | 0450 | 63.00 | 56.00 | 61.00 | 39.50 | 14.00 | 8.00 | 4.00 | 5.00 |
| 48 | 0480 | 66.00 | 59.00 | 64.00 | 46.00 | 14.00 | 8.00 | 4.00 | 5.00 |
| 50 | 0500 | 70.00 | 62.00 | 66.00 | 45.00 | 15.00 | 8.50 | 4.00 | 5.00 |
| 53 | 0530 | 73.00 | 65.00 | 69.00 | 47.00 | 15.00 | 8.50 | 4.00 | 5.00 |
| 55 | 0550 | 75.00 | 67.00 | 71.00 | 49.00 | 15.00 | 8.50 | 4.00 | 5.00 |
| 58 | 0580 | 78.00 | 70.00 | 76.00 | 55.00 | 15.00 | 8.50 | 4.00 | 5.00 |
| 60 | 0600 | 80.00 | 72.00 | 78.00 | 55.00 | 15.00 | 8.50 | 4.00 | 5.00 |
| 65 | 0650 | 85.00 | 77.00 | 84.00 | 55.00 | 15.00 | 8.50 | 4.00 | 5.00 |
| 68 | 0680 | 90.00 | 81.00 | 88.00 | 55.00 | 18.00 | 9.50 | 4.00 | 5.00 |
| 70 | 0700 | 92.00 | 83.00 | 90.00 | 57.00 | 18.00 | 9.50 | 4.00 | 5.00 |
| 75 | 0750 | 97.00 | 88.00 | 98.00 | 62.00 | 18.00 | 9.50 | 4.00 | 5.00 |
| 80 | 0800 | 105.00 | 95.00 | 100.00 | 61.80 | 18.20 | 10.00 | 4.00 | 5.00 |
Type 15
Description:
Robust bellows axial face seal for a wide range of application, combination with miscellaneous types of stationary rings possible.
- Pressure:
- 14 bar
- Speed:
- 12 m/s
- Temperature:
- -40 °C to +200 °C
Standard dimensions:
| Shaft Ø in mm |
Size Code |
D1 | D2 | D3 | L1 | L2 | L3 |
|---|---|---|---|---|---|---|---|
| 10 | 0100 | 19.20 | 15.50 | 24.00 | 14.50 | 9.00 | 6.60 |
| 12 | 0120 | 21.60 | 17.50 | 24.00 | 15.00 | 8.00 | 5.60 |
| 14 | 0140 | 24.60 | 20.50 | 28.00 | 17.00 | 8.00 | 5.60 |
| 15 | 0150 | 24.60 | 20.50 | 28.00 | 17.00 | 9.00 | 6.60 |
| 16 | 0160 | 28.00 | 22.00 | 28.00 | 17.0 | 10.00 | 7.50 |
| 18 | 0180 | 30.00 | 24.00 | 31.00 | 19.50 | 10.50 | 8.00 |
| 20 | 0200 | 35.00 | 29.50 | 36.00 | 21.50 | 10.00 | 7.50 |
| 22 | 0220 | 35.00 | 29.50 | 36.00 | 21.50 | 10.00 | 7.50 |
| 24 | 0240 | 38.00 | 32.00 | 40.50 | 22.50 | 10.00 | 7.50 |
| 25 | 0250 | 38.00 | 32.00 | 41.00 | 23.0 | 10.00 | 7.50 |
| 28 | 0280 | 42.00 | 36.00 | 47.00 | 26.50 | 11.50 | 9.00 |
| 30 | 0300 | 45.00 | 39.20 | 47.00 | 26.50 | 13.00 | 10.50 |
| 32 | 0320 | 48.00 | 42.20 | 51.00 | 27.50 | 13.00 | 10.50 |
| 33 | 0330 | 50.00 | 42.20 | 51.00 | 27.50 | 13.50 | 11.00 |
| 35 | 0350 | 52.00 | 46.20 | 55.00 | 28.50 | 13.50 | 11.00 |
| 38 | 0380 | 55.00 | 49.20 | 58.00 | 30.00 | 13.00 | 10.30 |
| 40 | 0400 | 58.00 | 52.20 | 60.00 | 30.00 | 13.50 | 10.80 |
| 43 | 0430 | 62.0 | 53.30 | 63.00 | 30.00 | 14.50 | 12.00 |
| 45 | 0450 | 64.00 | 53.30 | 65.00 | 30.00 | 14.50 | 11.60 |
| 48 | 0480 | 68.40 | 59.70 | 69.00 | 30.50 | 14.50 | 11.60 |
| 50 | 0500 | 69.30 | 60.80 | 71.00 | 30.50 | 14.50 | 11.60 |
| 53 | 0530 | 72.30 | 63.80 | 76.0 | 33.00 | 15.00 | 12.30 |
| 55 | 0550 | 75.40 | 66.50 | 78.00 | 35.00 | 16.00 | 13.30 |
| 58 | 0580 | 78.40 | 69.50 | 82.00 | 37.00 | 16.00 | 13.30 |
| 60 | 0600 | 80.40 | 71.50 | 85.00 | 38.00 | 16.00 | 13.30 |
| 65 | 0650 | 85.40 | 76.30 | 90.00 | 40.00 | 16.00 | 13.00 |
| 68 | 0680 | 91.50 | 82.70 | 94.00 | 40.00 | 16.0 | 13.70 |
| 70 | 0700 | 92.00 | 83.0 | 97.00 | 40.00 | 16.00 | 13.00 |
| 75 | 0750 | 99.00 | 90.20 | 102.00 | 40.00 | 17.00 | 14.00 |
| 80 | 0800 | 104.00 | 95.20 | 108.00 | 40.00 | 18.00 | 15.00 |
| 85 | 0850 | 109.00 | 100.20 | 117.00 | 41.00 | 18.00 | 14.80 |
| 90 | 0900 | 114.00 | 150.20 | 126.00 | 45.00 | 18.00 | 14.80 |
| 95 | 0950 | 120.30 | 111.60 | 131.00 | 46.00 | 19.00 | 15.80 |
| 100 | 1000 | 123.30 | 114.50 | 136.00 | 47.00 | 19.00 | 15.80 |
Type 1520
Description:
All-purpose bellows axial face seal, dimensions in accordance with American standards, robust elastomeric bellows, suitable for a wide range of application.
Combination with miscellaneous stationary rings possible.
- Pressure:
- 14 bar
- Speed:
- 12 m/s
- Temperature:
- -40 °C bis +200°C
Standard dimensions:
| Shaft Ø in Zoll |
Size Code |
D1 | D2 | D3 | L1 | L2 | L3 |
|---|---|---|---|---|---|---|---|
| 0.375 | 0095 | 24.60 | 16.00 | 20.00 | 25.40 | 8.74 | 7.47 |
| 0.500 | 0127 | 27.79 | 19.05 | 22.00 | 25.40 | 8.74 | 7.47 |
| 0.625 | 0158 | 30.95 | 22.23 | 26.00 | 25.40 | 10.32 | 8.97 |
| 0.750 | 0191 | 34.15 | 25.40 | 32.00 | 25.40 | 10.32 | 8.97 |
| 0.875 | 0222 | 37.30 | 28.58 | 36.00 | 25.40 | 10.32 | 8.97 |
| 1.000 | 0254 | 40.50 | 31.75 | 39.00 | 25.40 | 10.32 | 8.97 |
| 1.125 | 0286 | 47.63 | 35.72 | 42.00 | 33.34 | 11.99 | 10.46 |
| 1.250 | 0317 | 50.80 | 38.89 | 46.00 | 33.34 | 11.99 | 10.46 |
| 1.375 | 0349 | 53.98 | 42.07 | 49.00 | 33.34 | 11.99 | 10.46 |
| 1.500 | 0381 | 57.15 | 45.24 | 54.00 | 33.34 | 11.99 | 10.46 |
| 1.625 | 0412 | 60.35 | 48.42 | 56.00 | 33.34 | 11.99 | 10.46 |
| 1.750 | 0444 | 63.50 | 51.59 | 61.00 | 40.48 | 11.99 | 10.46 |
| 1.875 | 0476 | 66.70 | 54.75 | 64.00 | 40.48 | 11.99 | 10.46 |
| 2.000 | 0508 | 69.85 | 58.00 | 66.00 | 40.48 | 11.99 | 10.46 |
| 2.125 | 0539 | 73.05 | 62.00 | 69.00 | 41.00 | 13.50 | 11.96 |
| 2.250 | 0571 | 76.20 | 65.00 | 71.00 | 41.0 | 13.50 | 11.96 |
| 2.375 | 0603 | 79.40 | 68.00 | 80.00 | 41.00 | 13.50 | 11.96 |
| 2.500 | 0635 | 82.55 | 71.20 | 83.00 | 41.00 | 13.50 | 11.96 |
| 2.652 | 0666 | 92.10 | 78.35 | 85.00 | 49.00 | 15.90 | 14.50 |
| 2.750 | 0698 | 95.25 | 81.10 | 90.00 | 49.00 | 15.90 | 14.50 |
| 2.875 | 0730 | 98.45 | 84.50 | 96.00 | 49.00 | 15.90 | 14.50 |
| 3.000 | 0762 | 101.65 | 88.10 | 99.00 | 49.00 | 15.90 | 14.50 |
| 3.125 | 0794 | 111.15 | 93.68 | 104.00 | 56.00 | 20.00 | 18.50 |
| 3.250 | 0826 | 114.30 | 96.85 | 104.00 | 56.00 | 20.00 | 18.50 |
| 3.375 | 0857 | 117.50 | 100.00 | 109.00 | 56.00 | 20.00 | 18.50 |
| 3.500 | 0889 | 120.65 | 103.18 | 114.00 | 56.00 | 20.00 | 18.50 |
| 3.625 | 0921 | 123.85 | 106.35 | 114.00 | 50.00 | 20.00 | 18.50 |
| 3.750 | 0953 | 127.00 | 109.52 | 119.00 | 59.00 | 20.00 | 18.50 |
| 3.875 | 0984 | 130.20 | 112.65 | 112.00 | 62.00 | 20.00 | 18.50 |
| 4.000 | 1016 | 133.35 | 115.88 | 124.00 | 62.00 | 20.00 | 18.50 |
Type 18
Description:
Compact short bellows seal with very short working length.
- Pressure:
- 6 bar
- Speed:
- 10 m/s
- Temperature:
- -20 °C to +160 °C
Standard dimensions:
| Shaft Ø in mm |
Size Code |
D1 | D2 | D3 | L1 | L2 | L3 |
|---|---|---|---|---|---|---|---|
| 8 | 0080 | 26,00 | 11,00 | 24,00 | 11,00 | 8,00 | 6,00 |
| 10 | 0100 | 26,00 | 11,00 | 24,00 | 11,00 | 8,00 | 6,00 |
| 11 | 0110 | 26,00 | 13,00 | 24,00 | 11,00 | 8,00 | 6,00 |
| 12 | 0120 | 26,00 | 14,00 | 24,00 | 11,00 | 8,00 | 6,00 |
| 12 | 0120.B | 26,00 | 13,00 | 24,00 | 13,00 | 8,00 | 6,00 |
| 12 | 0120.C | 35,00 | 16,00 | 32,00 | 13,00 | 8,00 | 6,00 |
| 13 | 0130 | 26,00 | 14,00 | 24,00 | 13,00 | 8,00 | 6,00 |
| 14 | 0140 | 35,00 | 16,00 | 32,00 | 13,00 | 8,00 | 6,00 |
| 15 | 0150 | 38,00 | 18,00 | 35,00 | 13,00 | 8,00 | 6,00 |
| 16 | 0160 | 38,00 | 18,00 | 35,00 | 13,00 | 8,00 | 6,00 |
| 16 | 0160.B | 42,00 | 21,00 | 39,00 | 13,00 | 8,00 | 6,00 |
| 17 | 0170 | 42,00 | 21,00 | 39,00 | 13,00 | 8,00 | 6,00 |
| 18 | 0180 | 42,00 | 21,00 | 39,00 | 13,00 | 8,00 | 6,00 |
| 19 | 0190 | 42,00 | 21,00 | 39,00 | 13,00 | 8,00 | 6,00 |
| 20 | 0200 | 42,00 | 21,00 | 39,00 | 13,00 | 8,00 | 6,00 |
| 20 | 0200.B | 45,00 | 23,00 | 42,00 | 13,00 | 10,00 | 8,00 |
| 22 | 0220 | 45,00 | 23,00 | 42,00 | 13,00 | 10,00 | 8,00 |
| 23 | 0230 | 50,00 | 27,00 | 47,00 | 14,00 | 10,00 | 8,00 |
| 24 | 0240 | 50,00 | 27,00 | 47,00 | 14,00 | 10,00 | 8,00 |
| 25 | 0250 | 50,00 | 27,00 | 47,00 | 14,00 | 10,00 | 8,00 |
| 28 | 0280 | 57,00 | 34,00 | 54,00 | 15,00 | 10,00 | 8,00 |
| 30 | 0300 | 57,00 | 34,00 | 54,00 | 15,00 | 10,00 | 8,00 |
| 32 | 0320 | 57,00 | 34,00 | 54,00 | 15,00 | 10,00 | 8,00 |
| 35 | 0350 | 63,00 | 37,00 | 60,00 | 16,00 | 10,00 | 8,00 |
| 38 | 0380 | 68,00 | 42,00 | 65,00 | 17,00 | 12,00 | 9,00 |
| 40 | 0400 | 68,00 | 42,00 | 65,00 | 17,00 | 12,00 | 9,00 |
| 45 | 0450 | 73,00 | 47,00 | 70,00 | 20,00 | 12,00 | 9,00 |
| 50 | 0500 | 88,00 | 52,00 | 85,00 | 20,00 | 15,00 | 12,00 |
| 60 | 0600 | 110,00 | 67,00 | 110,00 | 30,00 | 15,00 | 12,00 |
| 65 | 0650 | 110,00 | 67,00 | 110,00 | 30,00 | 15,00 | 12,00 |
| 70 | 0700 | 110,00 | 72,00 | 105,00 | 32,00 | 15,00 | 12,00 |
Type 39
Description:
Robust axial face seal for particularly difficult applications, independent of direction of rotation.
Stationary ring available in various materials. Dimension in acc. with DIN 24960.
- Pressure:
- 12 bar
- Speed:
- 20 m/s
- Temperature:
- -30 °C to +185 °C
Standard dimensions:
| Shaft Ø in mm |
D1 | D3 | D4 | D6 | D7 | D8 | L1 | L3 | L4 | L5 | L6 | L7 | L8 | R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 20 | 34 | 36 | 29 | 35 | 3 | 37,5 | 27,5 | 10 | 2 | 5 | 9 | 4,5 | 1,5 |
| 22 | 22 | 36 | 38 | 31 | 37 | 3 | 37,5 | 27,5 | 10 | 2 | 5 | 9 | 4,5 | 1,5 |
| 24 | 24 | 38 | 40 | 33 | 39 | 3 | 40 | 30 | 10 | 2 | 5 | 9 | 4,5 | 1,5 |
| 25 | 25 | 39 | 41 | 34 | 40 | 3 | 40 | 30 | 10 | 2 | 5 | 9 | 4,5 | 1,5 |
| 28 | 28 | 42 | 44 | 37 | 43 | 3 | 42,5 | 32,5 | 10 | 2 | 5 | 9 | 4,5 | 1,5 |
| 30 | 30 | 44 | 46 | 39 | 45 | 3 | 42,5 | 32,5 | 10 | 2 | 5 | 9 | 4,5 | 1,5 |
| 32 | 32 | 46 | 48 | 42 | 48 | 3 | 42,5 | 32,5 | 10 | 2 | 5 | 9 | 4,5 | 1,5 |
| 33 | 33 | 47 | 49 | 42 | 48 | 3 | 42,5 | 32,5 | 10 | 2 | 5 | 9 | 4,5 | 1,5 |
| 35 | 35 | 49 | 51 | 44 | 50 | 3 | 42,5 | 32,5 | 10 | 2 | 5 | 9 | 4,5 | 1,5 |
| 38 | 38 | 54 | 58 | 49 | 56 | 4 | 45 | 34 | 11 | 2 | 6 | 9 | 5 | 1,5 |
| 40 | 40 | 56 | 60 | 51 | 58 | 4 | 45 | 34 | 11 | 2 | 6 | 9 | 5 | 1,5 |
| 43 | 43 | 59 | 63 | 54 | 61 | 4 | 45 | 34 | 11 | 2 | 6 | 9 | 5 | 2,5 |
| 45 | 45 | 61 | 65 | 56 | 63 | 4 | 45 | 34 | 11 | 2 | 6 | 9 | 5 | 2,5 |
| 48 | 48 | 64 | 68 | 59 | 66 | 4 | 45 | 34 | 11 | 2 | 6 | 9 | 5 | 2,5 |
| 50 | 50 | 66 | 70 | 62 | 70 | 4 | 47,5 | 34,5 | 13 | 2,5 | 6 | 9 | 5 | 2,5 |
| 53 | 53 | 69 | 73 | 65 | 73 | 4 | 47,5 | 34,5 | 13 | 2,5 | 6 | 9 | 5 | 2,5 |
| 55 | 55 | 71 | 75 | 67 | 75 | 4 | 47,5 | 34,5 | 13 | 2,5 | 6 | 9 | 5 | 2,5 |
| 58 | 58 | 78 | 83 | 70 | 78 | 4 | 52,5 | 39,5 | 13 | 2,5 | 6 | 9 | 5 | 2,5 |
| 60 | 60 | 80 | 85 | 72 | 80 | 4 | 52,5 | 39,5 | 13 | 2,5 | 6 | 9 | 5 | 2,5 |
| 63 | 63 | 83 | 88 | 75 | 83 | 4 | 52,5 | 39,5 | 13 | 2,5 | 6 | 9 | 5 | 2,5 |
| 65 | 65 | 85 | 90 | 77 | 85 | 4 | 52,5 | 39,5 | 13 | 2,5 | 6 | 9 | 5 | 2,5 |
| 68 | 68 | 88 | 93 | 81 | 90 | 4 | 52,5 | 37,5 | 15 | 2,5 | 7 | 9 | 5 | 2,5 |
| 70 | 70 | 90 | 95 | 83 | 92 | 4 | 60 | 45 | 15 | 2,5 | 7 | 9 | 5 | 2,5 |
| 75 | 75 | 99 | 104 | 88 | 97 | 4 | 60 | 45 | 15 | 2,5 | 7 | 9 | 5 | 2,5 |
| 80 | 80 | 104 | 109 | 95 | 105 | 4 | 60 | 44,5 | 15,5 | 3 | 7 | 9 | 5 | 2,5 |
| 85 | 85 | 109 | 114 | 100 | 110 | 4 | 60 | 44,5 | 15,5 | 3 | 7 | 9 | 5 | 2,5 |
| 90 | 90 | 114 | 119 | 105 | 115 | 4 | 65 | 49,5 | 15,5 | 3 | 7 | 9 | 5 | 2,5 |
| 95 | 95 | 119 | 124 | 110 | 120 | 4 | 65 | 49,5 | 15,5 | 3 | 7 | 9 | 5 | 2,5 |
| 100 | 100 | 124 | 129 | 115 | 125 | 4 | 65 | 49,5 | 15,5 | 3 | 7 | 9 | 5 | 2,5 |
Type 97
Description:
Robust, gerneral purpose unbalanced pusher type seal, capable of many shaft-sealing duties. The type 97 drives from the shaft via the drive collar with grub screws insertet in the coil tail. Type 97 is also available with a short, non- pinned seat as Type 97N, see solumn L31 on the Type 95 page for revised seat length.
- Pressure:
- 15 bar
- Speed:
- 20 m/s
- Temperature:
- -50 °C bis +180 °C
Standard dimensions:
| Shaft Ø in Zoll |
Size Code |
D1 | D2 | D3 | L1 | L2 | L3 | L4 |
|---|---|---|---|---|---|---|---|---|
| 16 | 0160 | 28.57 | 24.31 | 29.00 | 41.50 | 32.50 | 15.00 | 4.00 |
| 18 | 0180 | 31.75 | 27.48 | 32.50 | 41.50 | 32.50 | 15.00 | 4.00 |
| 20 | 0200 | 33.32 | 29.06 | 34.50 | 44.50 | 35.50 | 15.00 | 4.00 |
| 22 | 0220 | 34.93 | 30.66 | 34.93 | 44.50 | 35.50 | 15.00 | 4.00 |
| 25 | 0250 | 39.85 | 33.84 | 38.10 | 49.00 | 39.00 | 16.00 | 4.00 |
| 28 | 0280 | 43.05 | 37.01 | 42.86 | 51.00 | 41.00 | 16.00 | 4.00 |
| 30 | 0300 | 44.63 | 38.61 | 45.50 | 51.00 | 41.00 | 16.00 | 4.00 |
| 32 | 0320 | 46.32 | 40.28 | 47.00 | 54.00 | 44.00 | 16.00 | 4.00 |
| 35 | 0350 | 49.48 | 43.46 | 50.00 | 57.00 | 47.00 | 16.00 | 4.00 |
| 38 | 0380 | 52.56 | 46.63 | 53.00 | 57.00 | 47.00 | 16.00 | 4.00 |
| 40 | 0400 | 54.25 | 48.13 | 55.00 | 57.00 | 47.00 | 16.00 | 4.00 |
| 42 | 0420 | 55.83 | 49.81 | 55.50 | 57.00 | 47.00 | 16.00 | 4.00 |
| 45 | 0450 | 59.02 | 52.98 | 60.00 | 57.00 | 47.00 | 16.00 | 4.00 |
| 48 | 0480 | 63.68 | 57.66 | 61.91 | 65.00 | 55.00 | 18.00 | 5.00 |
| 50 | 0500 | 65.37 | 59.33 | 66.00 | 68.50 | 58.50 | 18.00 | 5.00 |
| 66.85 | 60.83 | 66.68 | 68.50 | 58.50 | 18.00 | 5.00 | ||
| 55 | 0550 | 70.03 | 64.01 | 71.00 | 70.00 | 60.00 | 18.00 | 5.00 |
| 73.20 | 67.18 | 73.02 | 70.00 | 60.00 | 18.00 | 5.00 | ||
| 60 | 0600 | 76.38 | 70.36 | 77.00 | 73.00 | 63.00 | 18.00 | 5.00 |
| 79.56 | 73.56 | 79.38 | 73.00 | 63.00 | 18.00 | 5.00 | ||
| 65 | 0650 | 81.23 | 75.21 | 82.00 | 76.00 | 66.00 | 18.00 | 5.00 |
| 82.73 | 76.71 | 82.55 | 76.00 | 66.00 | 18.00 | 5.00 | ||
| 70 | 0700 | 85.90 | 79.88 | 87.00 | 76.00 | 66.00 | 18.00 | 5.00 |
| 73 | 0730 | 89.08 | 83.06 | 90.00 | 81.00 | 71.00 | 18.00 | 5.00 |
| 75 | 0750 | 90.77 | 84.73 | 91.50 | 81.00 | 71.00 | 18.00 | 5.00 |
| 95.43 | 89.41 | 95.25 | 87.50 | 77.50 | 18.00 | 5.00 | ||
| 80 | 0800 | 100.29 | 94.26 | 99.50 | 87.50 | 77.50 | 18.00 | 5.00 |
| 101.78 | 95.76 | 101.60 | 87.50 | 77.50 | 18..00 | 5.00 | ||
| 85 | 0850 | 104.77 | 98.93 | 105.50 | 87.50 | 77.50 | 18.00 | 5.00 |
| 108.13 | 102.11 | 107.95 | 87.50 | 77.50 | 18.00 | 5.00 | ||
| 90 | 0900 | 109.82 | 103.78 | 110.50 | 92.00 | 82.00 | 18.00 | 5.00 |
| 95 | 0950 | 114.30 | 108.46 | 115.50 | 92.00 | 82.00 | 18.00 | 5.00 |
| 100 | 1000 | 119.33 | 113.31 | 120.00 | 92.00 | 82.00 | 18.00 | 5.00 |
| 124.00 | 117.98 | 124.50 | 98.50 | 88.50 | 18.00 | 5.00 | ||
| 105 | 1050 | 127.00 | 121.16 | 128.00 | 98.50 | 88.50 | 18.00 | 5.00 |
| 110 | 1010 | 131.77 | 126.01 | 133.00 | 98.50 | 88.50 | 18.00 | 5.00 |
| 115 | 1150 | 136.52 | 130.68 | 137.50 | 98.50 | 88.50 | 18.00 | 5.00 |
| 120 | 1200 | 142.87 | 137.03 | 144.00 | 105.00 | 95.00 | 18.00 | 5.00 |
Type 1724
Description:
All-purpose bellows axial face seal with robust with robust single spring, independent of direction of rotation, combination with various types of stationary rings possible.
- Pressure:
- bis 40 bar
- Speed:
- 13 m/s
- Temperature:
- -40 °C to +200°C
Standard dimensions:
| Shaft Ø in mm |
Size Code |
D1 | D2 | L1 | L2 | L3 |
|---|---|---|---|---|---|---|
| 14.0 | 0140 | 25.0 | 24.0 | 26.4 | 8.6 | 35.0 |
| 16.0 | 0160 | 27,0 | 26,0 | 26,4 | 8,6 | 35,0 |
| 18.0 | 0180 | 33.0 | 32.0 | 27.5 | 10.0 | 37.5 |
| 20.0 | 0200 | 35.0 | 34.0 | 27.5 | 10.0 | 37.5 |
| 22.0 | 0220 | 37.0 | 36.0 | 27.5 | 10.0 | 37.5 |
| 24.0 | 0240 | 39.0 | 38.0 | 30.0 | 10.0 | 40.0 |
| 25.0 | 0250 | 40.0 | 39.0 | 30.0 | 10.0 | 40.0 |
| 28.0 | 0280 | 43.0 | 42.0 | 32.5 | 10.0 | 42.5 |
| 30.0 | 0300 | 45.0 | 44.0 | 32.5 | 10.0 | 42.5 |
| 32.0 | 0320 | 48.0 | 46.0 | 32.5 | 10.0 | 42.5 |
| 33.0 | 0330 | 48.0 | 47.0 | 32.5 | 10.0 | 42.5 |
| 35.0 | 0350 | 50.0 | 49.0 | 32.5 | 10.0 | 42.5 |
| 38.0 | 0380 | 56.0 | 54.0 | 34.0 | 11.0 | 45.0 |
| 40.0 | 0400 | 58.0 | 56.0 | 34.0 | 11.0 | 45.0 |
| 43.0 | 0430 | 61.0 | 59.0 | 34.0 | 11.0 | 45.0 |
| 45.0 | 0450 | 63.0 | 61.0 | 34.0 | 11.0 | 45.0 |
| 48.0 | 0480 | 66.0 | 64.0 | 34.0 | 11.0 | 45.0 |
| 50.0 | 0500 | 70.0 | 66.0 | 34.5 | 13.0 | 47.5 |
| 53.0 | 0530 | 73.0 | 69.0 | 34.5 | 13.0 | 47.5 |
| 55.0 | 0550 | 75.0 | 71.0 | 34.5 | 13.0 | 47.5 |
| 58.0 | 0580 | 78.0 | 78.0 | 39.5 | 13.0 | 52.5 |
| 60.0 | 0600 | 80.0 | 80.0 | 39.5 | 13.0 | 52.5 |
| 63.0 | 0630 | 83.0 | 83.0 | 39.5 | 13.0 | 52.5 |
| 65.0 | 0650 | 85.0 | 85.0 | 39.5 | 13.0 | 52.5 |
| 68.0 | 0680 | 80.0 | 88.0 | 37.2 | 15.3 | 52.5 |
| 70.0 | 0700 | 92.0 | 89.0 | 44.7 | 15.3 | 60.0 |
| 75.0 | 0750 | 97.0 | 96.0 | 44.7 | 15.3 | 60.0 |
| 80.0 | 0800 | 105.0 | 104.0 | 44.3 | 15.7 | 60.0 |
| 85.0 | 0850 | 110.0 | 108.0 | 44.3 | 15.7 | 60.0 |
| 90.0 | 0900 | 115.0 | 114.0 | 49.3 | 15.7 | 65.0 |
| 95.0 | 0950 | 120.0 | 118.0 | 49.3 | 15.7 | 65.0 |
| 100.0 | 1000 | 125.0 | 124.0 | 49.3 | 15.7 | 65.0 |
Type 21
Description:
O-ring-mounted stationary ring with circumferential groove, chrome-plated steel with miscellaneous elastomers available.
Alternative for ceramic stationary ring type 10/20 with chevron
Standard dimensions:
| Shaft Ø in Zoll |
Shaft Ø in mm |
Size Code | D1 | D2 | D3 | L1 | L2 | H |
|---|---|---|---|---|---|---|---|---|
| 0,375 | 10 | 0100 | 10.60 | 16.50 | 24.60 | 8.70 | 1.50 | 4.00 |
| 0.500 | 12,13 | 0127 | 13.80 | 19.00 | 27.79 | 8.70 | 1.50 | 4.00 |
| 0.625 | 14,15,16 | 0158 | 17.00 | 22.00 | 30.95 | 10.30 | 1.50 | 4.00 |
| 0.750 | 18,19 | 0191 | 20.20 | 26.00 | 34.15 | 10.30 | 1.50 | 4.00 |
| 0.812 | 20 | 0206 | 21.70 | 28.00 | 35.70 | 10.30 | 1.50 | 4.00 |
| 0.875 | 22 | 0222 | 23.30 | 29.50 | 37.30 | 10.30 | 1.50 | 4.00 |
| 0.937 | 24 | 0238 | 26.80 | 32.50 | 40.50 | 10.30 | 1.50 | 4.00 |
| 1.000 | 25,26 | 0254 | 26.80 | 32.50 | 40.50 | 10.30 | 1.50 | 4.00 |
| 1.125 | 28 | 0286 | 30.00 | 38.00 | 47.63 | 11.90 | 2.00 | 4.50 |
| 1.250 | 30,32 | 0317 | 33.10 | 41.50 | 50.80 | 11.90 | 2.00 | 4.50 |
| 1.375 | 33,34,35 | 0349 | 36.30 | 44.50 | 53.98 | 11.90 | 2.00 | 4.50 |
| 1.500 | 38 | 0381 | 39.50 | 47.50 | 57.15 | 11.90 | 2.00 | 4.50 |
| 1.625 | 40 | 0412 | 42.60 | 51.00 | 60.35 | 11.90 | 2.00 | 4.50 |
| 1.750 | 42,43,44,45 | 0444 | 45.80 | 54.00 | 63.50 | 11.90 | 2.00 | 4.50 |
| 1.875 | 48 | 0476 | 49.00 | 57.00 | 66.70 | 11.90 | 2.00 | 4.50 |
| 2.000 | 50 | 0508 | 52.20 | 60.50 | 69.85 | 13.50 | 2.00 | 4.50 |
| 2.125 | 53 | 0540 | 55.40 | 63.50 | 73.05 | 13.50 | 2.00 | 4.50 |
| 2.250 | 55 | 0571 | 58.50 | 66.50 | 76.20 | 13.50 | 2.00 | 4.50 |
| 2.375 | 58,60 | 0603 | 61.70 | 70.00 | 79.40 | 13.50 | 2.00 | 4.50 |
| 2.500 | 63 | 0630 | 65.10 | 73.00 | 82.55 | 13.50 | 2.00 | 4.50 |
| 2.625 | 65 | 0666 | 68.20 | 79.50 | 92.10 | 15.90 | 2.50 | 5.50 |
| 2.750 | 68,70 | 0698 | 71.40 | 82.50 | 95.25 | 15.90 | 2.50 | 5.50 |
| 2.875 | 73 | 0730 | 74.60 | 85.50 | 98.45 | 15.90 | 2.50 | 5.50 |
| 3.000 | 75 | 0762 | 77.60 | 89.00 | 101.65 | 15.90 | 2.50 | 5.50 |
Type 7622 D
Description:
O-ring-mounted stationary ring acc. to DIN 24960, without anti-twist guard. Various materials for stationary rings and O-rings are available. Can be combined with nearly all rotor types.
Standard dimensions:
| Shaft Ø in mm |
Size Code |
D1 | D2 | D3 | D4 | L1 | L2 | L3 |
|---|---|---|---|---|---|---|---|---|
| 10 | 0100 | 11,00 | 20,60 | 16,40 | 21,00 | 10,00 | 8,60 | 6,00 |
| 12 | 0120 | 13,00 | 22,60 | 18,40 | 23,00 | 10,00 | 8,60 | 6,00 |
| 14 | 0140 | 15,00 | 24,60 | 20,40 | 25,00 | 10,00 | 8,60 | 6,00 |
| 16 | 0160 | 17,00 | 26,60 | 22,40 | 27,00 | 10,00 | 8,60 | 6,00 |
| 18 | 0180 | 19,00 | 32,60 | 26,60 | 33,00 | 11,50 | 10,00 | 6,50 |
| 20 | 0200 | 21,00 | 34,60 | 28,60 | 35,00 | 11,50 | 10,00 | 6,50 |
| 22 | 0220 | 23,00 | 36,60 | 30,60 | 37,00 | 11,50 | 10,00 | 6,50 |
| 24 | 0240 | 25,00 | 38,60 | 32,60 | 39,00 | 11,50 | 10,00 | 6,50 |
| 25 | 0250 | 26,00 | 39,60 | 33,60 | 40,00 | 11,50 | 10,00 | 6,50 |
| 28 | 0280 | 29,00 | 42,60 | 36,60 | 43,00 | 11,50 | 10,00 | 6,50 |
| 30 | 0300 | 31,00 | 44,60 | 38,60 | 45,00 | 11,50 | 10,00 | 6,50 |
| 32 | 0320 | 33,00 | 47,60 | 41,60 | 48,00 | 11,50 | 10,00 | 6,50 |
| 33 | 0330 | 34,00 | 47,60 | 41,60 | 48,00 | 11,50 | 10,00 | 6,50 |
| 35 | 0350 | 36,00 | 49,60 | 43,80 | 50,00 | 11,50 | 10,00 | 6,50 |
| 38 | 0380 | 39,00 | 55,60 | 48,80 | 56,00 | 12,50 | 11,00 | 7,00 |
| 40 | 0400 | 41,00 | 57,60 | 50,80 | 58,00 | 12,50 | 11,00 | 7,00 |
| 43 | 0430 | 44,00 | 60,60 | 53,80 | 61,00 | 12,50 | 11,00 | 7,00 |
| 45 | 0450 | 46,00 | 62,60 | 55,80 | 63,00 | 12,50 | 11,00 | 7,00 |
| 48 | 0480 | 49,00 | 65,60 | 58,80 | 66,00 | 12,50 | 11,00 | 7,00 |
| 50 | 0550 | 51,00 | 69,60 | 61,30 | 70,00 | 14,50 | 13,00 | 8,50 |
| 53 | 0530 | 54,00 | 72,60 | 64,30 | 73,00 | 14,50 | 13,00 | 8,50 |
| 55 | 0550 | 56,00 | 74,60 | 66,30 | 75,00 | 14,50 | 13,00 | 8,50 |
| 58 | 0580 | 59,00 | 77,50 | 69,30 | 78,00 | 14,50 | 13,00 | 8,50 |
| 60 | 0600 | 61,00 | 79,50 | 71,30 | 80,00 | 14,50 | 13,00 | 8,50 |
| 63 | 0630 | 64,00 | 82,50 | 74,30 | 83,00 | 14,50 | 13,00 | 8,50 |
| 65 | 0650 | 66,00 | 84,50 | 76,30 | 85,00 | 14,50 | 13,00 | 8,50 |
| 68 | 0680 | 69,00 | 89,50 | 80,50 | 90,00 | 16,50 | 15,30 | 10,00 |
| 70 | 0700 | 71,20 | 91,40 | 82,60 | 92,00 | 16,50 | 15,30 | 10,00 |
| 75 | 0750 | 76,20 | 96,40 | 87,60 | 97,00 | 16,50 | 15,30 | 10,00 |
| 80 | 0800 | 81,20 | 104,20 | 94,70 | 105,00 | 17,50 | 15,70 | 10,00 |
| 85 | 0850 | 86,20 | 109,20 | 99,70 | 110,00 | 17,50 | 15,70 | 10,00 |
| 90 | 0900 | 91,20 | 114,20 | 104,70 | 115,00 | 17,50 | 15,70 | 10,00 |
| 95 | 0950 | 96,20 | 119,20 | 109,70 | 120,00 | 17,50 | 15,70 | 10,00 |
| 100 | 1000 | 101,20 | 124,20 | 114,70 | 125,00 | 17,50 | 15,70 | 10,00 |
Type 7622 DL
Description:
O-ring-mounted stationary ring, DIN-long with anti-twist guard like DIN-short without anti-twist guard. Various materials for stationary rings and O-rings are available. Can be combined with nearly all rotor types.
Standard dimensions:
| Shaft Ø in mm |
Size Code |
D1 | D2 | D3 | L1 | L2 | L3 |
|---|---|---|---|---|---|---|---|
| 10 | 0100 | 21.00 | 20.60 | 6.60 | 5.50 | 10.00 | 3.00 |
| 12 | 0120 | 23.00 | 22.60 | 6.60 | 5.50 | 10.00 | 3.00 |
| 14 | 0140 | 25.00 | 24.60 | 6.60 | 5.50 | 10.00 | 3.00 |
| 15 | 0150 | 27.00 | 26.60 | 6.60 | 5.50 | 10.00 | 3.00 |
| 16 | 0160 | 27.00 | 26.60 | 6.60 | 5.50 | 10.00 | 3.00 |
| 18 | 0180 | 33.00 | 32.60 | 7.50 | 7.00 | 11.50 | 3.00 |
| 20 | 0200 | 35.00 | 34.60 | 7.50 | 7.00 | 11.50 | 3.00 |
| 22 | 0220 | 37.00 | 36.60 | 7.50 | 7.00 | 11.50 | 3.00 |
| 24 | 0240 | 39.00 | 38.60 | 7.50 | 7.00 | 11.50 | 3.00 |
| 25 | 0250 | 40.00 | 39.60 | 7.50 | 7.00 | 11.50 | 3.00 |
| 28 | 0280 | 43.00 | 42.60 | 7.50 | 7.00 | 11.50 | 3.00 |
| 30 | 0300 | 45.00 | 44.60 | 7.50 | 7.00 | 11.50 | 3.00 |
| 32 | 0320 | 48.00 | 47.60 | 7.50 | 7.00 | 11.50 | 3.00 |
| 35 | 0350 | 48.00 | 47.60 | 7.50 | 7.00 | 11.50 | 3.00 |
| 38 | 0380 | 56.00 | 55.60 | 9.00 | 8.00 | 14.00 | 4.00 |
| 40 | 0400 | 58.00 | 57.40 | 9.00 | 8.00 | 14.00 | 4.00 |
| 43 | 0430 | 61.00 | 60.60 | 9.00 | 8.00 | 14.00 | 4.00 |
| 45 | 0450 | 63.00 | 62.60 | 9.00 | 8.00 | 14.00 | 4.00 |
| 48 | 0480 | 66.00 | 65.60 | 9.00 | 8.00 | 14.00 | 4.00 |
| 50 | 0500 | 70.00 | 69.60 | 9.50 | 8.50 | 15.00 | 4.00 |
| 53 | 0530 | 73.00 | 72.60 | 11.00 | 8.50 | 15.00 | 4.00 |
| 55 | 0550 | 75.00 | 74.40 | 11.00 | 8.50 | 15.00 | 4.00 |
| 58 | 0580 | 78.00 | 77.50 | 11.00 | 8.50 | 15.00 | 4.00 |
| 60 | 0600 | 80.00 | 79.50 | 11.00 | 8.50 | 15.00 | 4.00 |
| 65 | 0650 | 85.00 | 84.50 | 11.00 | 8.50 | 15.00 | 4.00 |
| 68 | 0680 | 90.00 | 89.50 | 11.30 | 9.50 | 18.00 | 4.00 |
| 70 | 0700 | 92.00 | 91.40 | 11.30 | 9.50 | 18.00 | 4.00 |
| 75 | 0750 | 97.00 | 96.40 | 11.30 | 9.50 | 18.00 | 4.00 |
| 80 | 0800 | 105.00 | 104.20 | 12.00 | 10.00 | 18.20 | 4.00 |
| 85 | 0850 | 110.00 | 109.20 | 14.00 | 10.00 | 18.20 | 4.00 |
| 90 | 0900 | 115.00 | 114.20 | 1400 | 10.00 | 18.20 | 4.00 |
| 95 | 0950 | 120.00 | 119.20 | 14.00 | 10.00 | 17.20 | 4.00 |
| 100 | 1000 | 125.00 | 124.20 | 14.00 | 10.00 | 17.20 | 4.00 |
Type 7624
Description:
Stationary rings with chevron seals.
Standard dimensions:
| Shaft Ø in mm |
Size Code |
D7 | TYP 19B L1 |
TYP 24B L2 |
|---|---|---|---|---|
| 12 | 0120 | 23.00 | 6.60 | 8.60 |
| 14 | 0140 | 25.00 | 6.60 | 8.60 |
| 15 | 0150 | 27.00 | 6.60 | 8.60 |
| 16 | 0160 | 27.00 | 6.60 | 10.00 |
| 18 | 0180 | 33.00 | 7.50 | 10.00 |
| 20 | 0200 | 35.00 | 7.50 | 10.00 |
| 22 | 0220 | 37.00 | 7.50 | 10.00 |
| 24 | 0240 | 39.00 | 7.50 | 10.00 |
| 25 | 0250 | 40.00 | 7.50 | 10.00 |
| 28 | 0280 | 43.00 | 7.50 | 10.00 |
| 30 | 0300 | 45.00 | 7.50 | 10.00 |
| 32 | 0320 | 48.00 | 7.50 | 10.00 |
| 35 | 0350 | 50.00 | 7.50 | 10.00 |
| 38 | 0380 | 56.00 | 9.00 | 11.00 |
| 40 | 0400 | 58.00 | 9.00 | 11.00 |
| 43 | 0430 | 61.00 | 9.00 | 11.00 |
| 45 | 0450 | 63.00 | 9.00 | 11.00 |
| 48 | 0480 | 66.00 | 9.00 | 11.00 |
| 50 | 0500 | 70.00 | 9.50 | 13.00 |
| 53 | 0530 | 73.00 | 11.00 | 13.00 |
| 55 | 0550 | 75.00 | 11.00 | 13.00 |
| 58 | 0580 | 71.00 | 11.00 | 13.00 |
| 60 | 0600 | 80.00 | 11.00 | 13.00 |
| 65 | 0650 | 85.00 | 11.00 | 13.00 |
| 68 | 0680 | 90.00 | 11.30 | 13.00 |
| 70 | 0700 | 92.00 | 11.30 | 15.30 |
| 75 | 0750 | 97.00 | 11.30 | 13.50 |
| 80 | 0800 | 105.00 | 12.00 | 15.30 |
| 85 | 0850 | 110.00 | 14.00 | 15.70 |
| 90 | 0900 | 115.00 | 14.00 | 15.70 |
| 95 | 0950 | 120.00 | 14.00 | 15.70 |
| 100 | 1000 | 125.00 | 14.00 | 15.70 |
GRD [Götze]

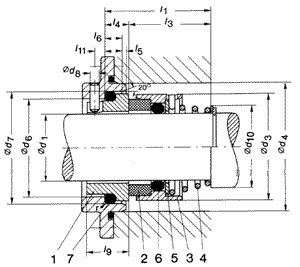

Typ 76.15 U
| Part no. | designation |
| 1 | counter ring |
| 2 | sliding ring |
| 3 | housing |
| 4 | compression spring |
| 5 | cover disc |
| 6 | O-ring |
| 7 | O-ring |
The seal type 76.15 U is designed for higher operating stress, especially in refineries, chemistry, hot water-, construction sites and sewage pumps. This seal design allows the use of highly corrosive-resistant and wear-resistant materials, a very wide range of applications, because of their wide resistance against numerous media such as acids, alkalis, saline solutions and organic liquids. For extreme wear conditions caused by abrasive media, rotating and stationary seal rings can be made carbide or silicon carbide.
| Nennmaß | Ø d1 h6 |
Ø d3 | Ø d4 >= |
Ø d6 h21 |
Ø d7 | Ø d10 H8 |
I1 ± 0,5 |
I3 | I4 | I5 | I6 | I9 | r |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 x 20 | 10 | 20 | 22 | 17 | 21 | 15 | 32,5 | 23,5 | 9 | 1,5 | 4 | 10 | 1,2 |
| 12 x 22 | 12 | 22 | 24 | 19 | 23 | 17 | 32,5 | 23,5 | 9 | 1,5 | 4 | 10 | 1,2 |
| 14 x 24 | 14 | 24 | 26 | 21 | 25 | 20 | 35 | 26 | 9 | 1,5 | 4 | 10 | 1,2 |
| 16 x 26 | 16 | 26 | 28 | 23 | 27 | 22 | 35 | 26 | 9 | 1,5 | 4 | 10 | 1,2 |
| 18 x 32 | 18 | 32 | 34 | 27 | 33 | 25 | 37,5 | 27 | 10,5 | 2 | 5 | 12 | 1,5 |
| 20 x 32 | 20 | 32 | 36 | 29 | 35 | 27 | 37,5 | 27 | 10,5 | 2 | 5 | 12 | 1,5 |
| 22 x 35 | 22 | 35 | 38 | 31 | 23 | 29 | 37,5 | 27 | 10,5 | 2 | 5 | 13 | 1,5 |
| 24 x 38 | 24 | 38 | 40 | 33 | 39 | 32 | 40 | 29,5 | 10,5 | 2 | 5 | 13 | 1,5 |
| 25 x 38 | 25 | 38 | 41 | 34 | 40 | 33 | 40 | 29,5 | 10,5 | 2 | 5 | 13 | 1,5 |
| 28 x 42 | 28 | 42 | 44 | 37 | 43 | 37 | 42,5 | 32 | 10,5 | 2 | 5 | 13 | 1,5 |
| 30 x 44 | 30 | 44 | 46 | 39 | 45 | 39 | 42,5 | 32 | 10,5 | 2 | 5 | 13 | 1,5 |
| 32 x 46 | 32 | 46 | 48 | 42 | 48 | 41 | 42,5 | 32 | 10,5 | 2 | 5 | 13 | 1,5 |
| 33 x 47 | 33 | 47 | 49 | 42 | 48 | 42 | 42,5 | 32 | 10,5 | 2 | 5 | 13 | 1,5 |
| 35 x 49 | 35 | 49 | 51 | 44 | 50 | 45 | 42,5 | 32 | 10,5 | 2 | 5 | 13 | 1,5 |
| 38 x 52 | 38 | 52 | 58 | 49 | 56 | 49 | 45 | 33 | 12 | 2 | 6 | 14 | 1,5 |
| 40 x 55 | 40 | 55 | 60 | 51 | 58 | 52 | 45 | 33 | 12 | 2 | 6 | 14 | 1,5 |
| 43 x 59 | 43 | 59 | 63 | 54 | 61 | 56 | 45 | 33 | 12 | 2 | 6 | 14 | 1,5 |
| 45 x 60 | 45 | 60 | 65 | 56 | 63 | 58 | 45 | 33 | 12 | 2 | 6 | 14 | 1,5 |
| 48 x 64 | 48 | 64 | 68 | 59 | 66 | 60 | 45 | 33 | 12 | 2 | 6 | 14 | 1,5 |
| 50 x 65 | 50 | 65 | 70 | 62 | 70 | 62 | 47,5 | 33,5 | 14 | 2,5 | 6 | 16 | 1,5 |
| 53 x 69 | 53 | 69 | 73 | 65 | 73 | 66 | 47,5 | 33,5 | 14 | 2,5 | 6 | 16 | 1,5 |
| 55 x 70 | 55 | 70 | 75 | 67 | 75 | 69 | 47,5 | 33,5 | 14 | 2,5 | 6 | 16 | 1,5 |
| 58 x 75 | 58 | 75 | 83 | 70 | 78 | 72 | 52,5 | 38,5 | 14 | 2,5 | 6 | 16 | 1,5 |
| 60 x 77 | 60 | 77 | 85 | 72 | 80 | 75 | 52,5 | 38,5 | 14 | 2,5 | 6 | 16 | 1,5 |
| 63 x 83 | 63 | 83 | 88 | 75 | 83 | 78 | 52,5 | 38,5 | 14 | 2,5 | 6 | 16 | 1,5 |
| 65 x 85 | 65 | 85 | 90 | 77 | 85 | 80 | 52,5 | 38,5 | 14 | 2,5 | 6 | 16 | 1,5 |
| 68 x 88 | 68 | 88 | 93 | 81 | 90 | 83 | 60 | 44 | 16 | 2,5 | 7 | 18 | 1,5 |
| 70 x 90 | 70 | 90 | 95 | 83 | 92 | 85 | 60 | 44 | 16 | 2,5 | 7 | 18 | 1,5 |

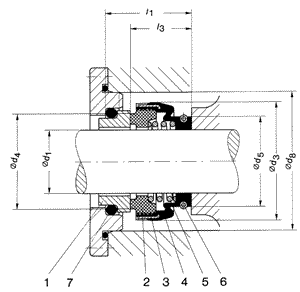

Typ 76.53 UK
| Part no. | designation |
| 1 | counter ring |
| 2 | sliding ring |
| 3 | stiffening ring |
| 4 | sealing bellows |
| 5 | cylinder compression spring |
| 6 | spring |
| 7 | O-ring |
The seal is circumferential to the shaft, independent in the direction of rotation in the pressure chamber and is not depressurized. Its tight configuration and the compression spring outside the sealed medium, it is preferably used where dirt deposits can block exposed springs or where good cleaning conditions are required. The torque transmission between the sliding ring and bellows is ensured by the vulcanized V-ring. The torque between the bellows and the shaft is ensured by a closed spring-ring. Due to this construction, the seal is not suitable for sealing fats and oils, because the required frictional force between the shaft and bellows is reduced in the process.
| Nennmaß Ø d1 x Ø d3 |
Ø d1 h6 |
Ø d3 | Ø d4 | Ø d5 | Ø d8 | I1 | I3 | r |
|---|---|---|---|---|---|---|---|---|
| 6 x 18 | 6 | 18 | 13 | 11,8 | 20 | 15,6 | 10 | 1,2 |
| 10 x 24 | 10 | 24 | 19 | 17 | 26 | 22,6 | 16 | 1,2 |
| 12 x 26 | 12 | 26 | 21 | 19 | 28 | 21,6 | 16 | 1,2 |
| 14 x 28 | 14 | 28 | 23 | 21 | 30 | 21,6 | 16 | 1,2 |
| 15 x 30 | 15 | 30 | 24 | 22 | 32 | 22,6 | 16 | 1,2 |
| 16 x 33 | 16 | 33 | 26 | 24 | 36 | 25,5 | 18 | 1,2 |
| 18 x 36 | 18 | 36 | 28,5 | 26 | 39 | 26 | 18 | 1,5 |
| 20 x 38 | 20 | 38 | 31 | 29 | 41 | 25,5 | 18 | 1,5 |
| 22 x 40 | 22 | 40 | 33 | 31 | 43 | 27,5 | 20 | 1,5 |
| 24 x 43 | 24 | 43 | 35,5 | 33 | 46 | 27,5 | 20 | 1,5 |
| 25 x 44 | 25 | 44 | 36 | 34,5 | 47 | 27,5 | 20 | 1,5 |
| 28 x 47 | 28 | 47 | 39,5 | 37,5 | 50 | 31 | 22 | 1,5 |
| 30 x 50 | 30 | 50 | 43 | 40 | 53 | 32,5 | 22 | 1,5 |
| 32 x 53 | 32 | 53 | 45,5 | 42,5 | 56 | 36,5 | 26 | 1,5 |
| 35 x 56,5 | 35 | 56,5 | 48 | 46 | 59 | 37,0 | 26 | 1,5 |
| 38 x 59 | 38 | 59 | 52 | 49 | 63 | 36,3 | 26 | 1,5 |
| 40 x 61 | 40 | 61 | 54 | 51 | 65 | 36,8 | 26 | 1,5 |
| 45 x 73 | 45 | 73 | 61 | 58 | 77 | 37,6 | 26 | 1,5 |
| 50 x 78 | 50 | 78 | 67 | 63 | 82 | 37,6 | 26 | 1,5 |
| 65 x 95 | 65 | 95 | 84 | 80 | 100 | 43,0 | 30 | 2 |
| 70 x 100 | 70 | 100 | 90 | 90 | 104 | 43,0 | 30 | 2 |
| Bei Anfragen Gegenringe seperat aufführen | ||||||||
GLR [Götze]

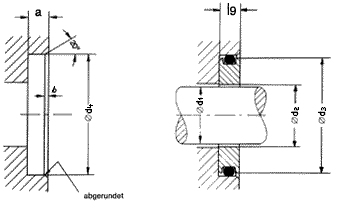

Typ 76.21
| Ø d1 | Ø d2 | Ø d3 | Ø d4 | a=l9 | Ø db |
|---|---|---|---|---|---|
| H8 | |||||
| 6 | 6,3 | 13,8 | 14,0 | 5,0 | 1,0 |
| 8 | 8,3 | 17,8 | 18,0 | 5,0 | 1,0 |
| 10 | 10,3 | 19,8 | 20,0 | 5,0 | 1,0 |
| 12 | 12,3 | 24,8 | 25 | 5,0 | 1,0 |
| 14 | 14,3 | 26,8 | 27,0 | 5,0 | 1,0 |
| 15 | 15,3 | 28,8 | 29,0 | 5,0 | 1,0 |
| 16 | 16,3 | 29,8 | 30,0 | 5,0 | 1,0 |
| 17 | 17,3 | 39,8 | 40,0 | 5,0 | 1,0 |
| 18 | 18,3 | 31,8 | 32,0 | 5,0 | 1,0 |
| 20 | 21,0 | 33,8 | 34 | 5,0 | 1,0 |
| 22 | 22,3 | 35,8 | 36,0 | 5,0 | 1,0 |
| 25 | 26,0 | 41,8 | 42,0 | 6,5 | 1,3 |
| 28 | 28,5 | 44,8 | 45,0 | 6,5 | 1,3 |
| 30 | 31,0 | 47,8 | 48,0 | 6,5 | 1,3 |
| 32 | 32,3 | 49,8 | 50,0 | 6,5 | 1,3 |
| 35 | 35,3 | 53,8 | 54,0 | 6,5 | 1,3 |
| 40 | 40,3 | 57,7 | 58,0 | 7,0 | 1,5 |
| 42 | 42,3 | 59,7 | 60,0 | 7,0 | 1,5 |
| 45 | 45,5 | 64,7 | 65,0 | 7,0 | 1,5 |
| 46 | 47,0 | 64,7 | 65,0 | 7,0 | 1,0 |
| 48 | 48,5 | 69,7 | 70,0 | 7,0 | 1,5 |
| 50 | 51,0 | 69,7 | 70,0 | 7,0 | 1,5 |
| 52 | 52,5 | 71,7 | 72,0 | 8,0 | 1,5 |
| 55 | 56,0 | 74,7 | 75,0 | 8,0 | 1,5 |
| 65 | 66,0 | 89,7 | 90,0 | 8,0 | 1,5 |
| 68 | 69,0 | 84,8 | 85,0 | 8,0 | 1,5 |
| 70 | 70,8 | 94,7 | 95,0 | 8,0 | 1,5 |
| 77 | 78,0 | 97,8 | 98,0 | 8,5 | 2,0 |
| 89 | 90,0 | 111,8 | 112,0 | 8,5 | 2,0 |
| 90 | 91,0 | 114,7 | 115,0 | 8,5 | 2,0 |
| Further dimensions on request | |||||

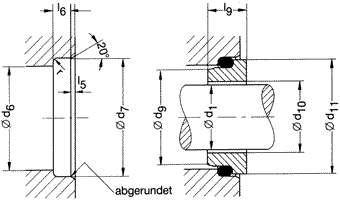

Typ 76.22
| Ø d1 | Ø d6 +0,1 |
Ø d7 H7 |
Ø d9 | Ø d10 | Ø d11 | I5 | a=I6 | I9 | r |
|---|---|---|---|---|---|---|---|---|---|
| 12 | 17,5 | 21,6 | 17,0 | 12,5 | 21,3 | 1,2 | 5,0 | 8,0 | 1,2 |
| 14 | 20,5 | 24,6 | 20,0 | 14,5 | 24,3 | 1,2 | 5,0 | 8,0 | 1,2 |
| 15 | 21,5 | 26,5 | 21,0 | 15,5 | 26,2 | 1,5 | 6,5 | 9,0 | 1,2 |
| 16 | 22,0 | 28,0 | 21,5 | 16,5 | 27,7 | 1,5 | 6,5 | 10,0 | 1,2 |
| 17 | 23,0 | 29,0 | 22,5 | 17,5 | 28,7 | 1,5 | 6,5 | 10,5 | 1,5 |
| 18 | 24,0 | 30,0 | 23,2 | 18,3 | 29,5 | 2 | 5 | 12,0 | 1,5 |
| 20 | 29,5 | 35 | 29,0 | 20,5 | 37,7 | 1,5 | 6,5 | 10,0 | 1,5 |
| 22 | 29,5 | 35,0 | 29,0 | 22,5 | 34,7 | 1,5 | 6,5 | 10,0 | 1,5 |
| 24 | 32,0 | 38,0 | 31,5 | 24,5 | 37,7 | 1,5 | 6,5 | 10 | 1,5 |
| 25 | 32,0 | 38,0 | 31,5 | 25,5 | 37,7 | 1,5 | 6,5 | 10,0 | 1,5 |
| 28 | 36,0 | 42,0 | 35,5 | 28,5 | 41,7 | 1,5 | 6,5 | 11,5 | 1,5 |
| 30 | 39,2 | 45,0 | 38,7 | 30,5 | 44,7 | 1,5 | 6,5 | 13,0 | 1,5 |
| 32 | 42,2 | 48,0 | 41,7 | 32,5 | 47,7 | 1,5 | 6,5 | 13,0 | 1,5 |
| 35 | 46,2 | 52,0 | 45,7 | 35,5 | 51,7 | 1,5 | 6,5 | 13,5 | 1,5 |
| 38 | 49,2 | 55,0 | 48,7 | 38,5 | 54,7 | 1,5 | 6,5 | 13,0 | 1,5 |
| 40 | 52,2 | 58,0 | 51,7 | 40,5 | 57,7 | 1,5 | 6,5 | 13,5 | 1,5 |
| 45 | 55,3 | 64,0 | 54,8 | 45,7 | 63,7 | 2,0 | 8 | 14,5 | 1,5 |
| 50 | 60,8 | 69,3 | 60,3 | 50,7 | 69,0 | 2,0 | 8,0 | 14,5 | 1,5 |
| 70 | 83,0 | 92,0 | 82,5 | 71,0 | 91,5 | 2,0 | 8,0 | 16,0 | 2,0 |
| Further dimensions on request / Gegenring Typ 76.22 auch mit Anschlußmaßen nach DIN 24 960 lieferbar | |||||||||
Typ 76.24
| Ø d1 | Ø d2 min |
Ø d4 | a | b | Ø d10 | Ø d11 | a=I9 | Form |
|---|---|---|---|---|---|---|---|---|
| 6 | - | 18,0 | 6,0 | 1,0 | 6,6+0,4 | 16,0 | 7,0 | AM |
| 12 | - | 25,0 | 6,0 | 1,0 | 12,6+0,4 | 22,0 | 7,0 | AM |
| 14 | - | 28,0 | 6,0 | 1,0 | 14,6+0,4 | 25,0 | 7,0 | AM |
| 15 | - | 28,0 | 6,0 | 1,0 | 15,6+0,4 | 25,0 | 7,0 | AM |
| 16 | - | 30,0 | 8,0 | 1,3 | 16,6+0,4 | 28,0 | 9,5 | AM |
| 18 | - | 32,0 | 8,0 | 1,3 | 18,6+0,4 | 30,0 | 9,5 | AM |
| 20 | - | 38,0 | 8,0 | 1,3 | 20,6+0,4 | 35,0 | 9,5 | AM |
| 28 | - | 45,0 | 8,0 | 1,3 | 28,7+0,5 | 42 | 9,5 | AM |
| 30 | - | 48,0 | 10,0 | 1,7 | 30,7+0,6 | 45,0 | 12,0 | AM |
| 30 | 34 | - | - | - | - | 48,0 | 5,0 | IM |
| 40 | - | 62,0 | 10,0 | 1,7 | 40,8+0,6 | 58,0 | 12,0 | AM |
| 45 | 49,0 | - | - | - | - | 70,0 | 7,0 | IM |
| 50 | 54,0 | - | - | - | - | 70,0 | 5,0 | IM |
| 58 | 63,0 | - | - | - | - | 75,0 | 7,0 | IM |
| 67 | 72,0 | - | - | - | - | 85,0 | 8,0 | IM |
| 85 | 89,0 | - | - | - | - | 112,0 | 10,0 | IM |
| 90 | 94,0 | - | - | - | - | 112,0 | 8,5 | IM |
| weitere Abmessungen auf Anfrage | ||||||||
